AU-I Series Compressor-Condenser Units
The main function of an air handling unit is to condition the air in terms of temperature and humidity before it enters the indoor space.
We recommend selecting compressor-condenser units based on capacity, where the CCU capacity should be 80% to 100% of the evaporator capacity.
This selection ensures optimal comfort and extends the service life of the CCU without significant deviations from the design concept.
Our product range fully covers capacity requirements from 18 kW to 48 kW.

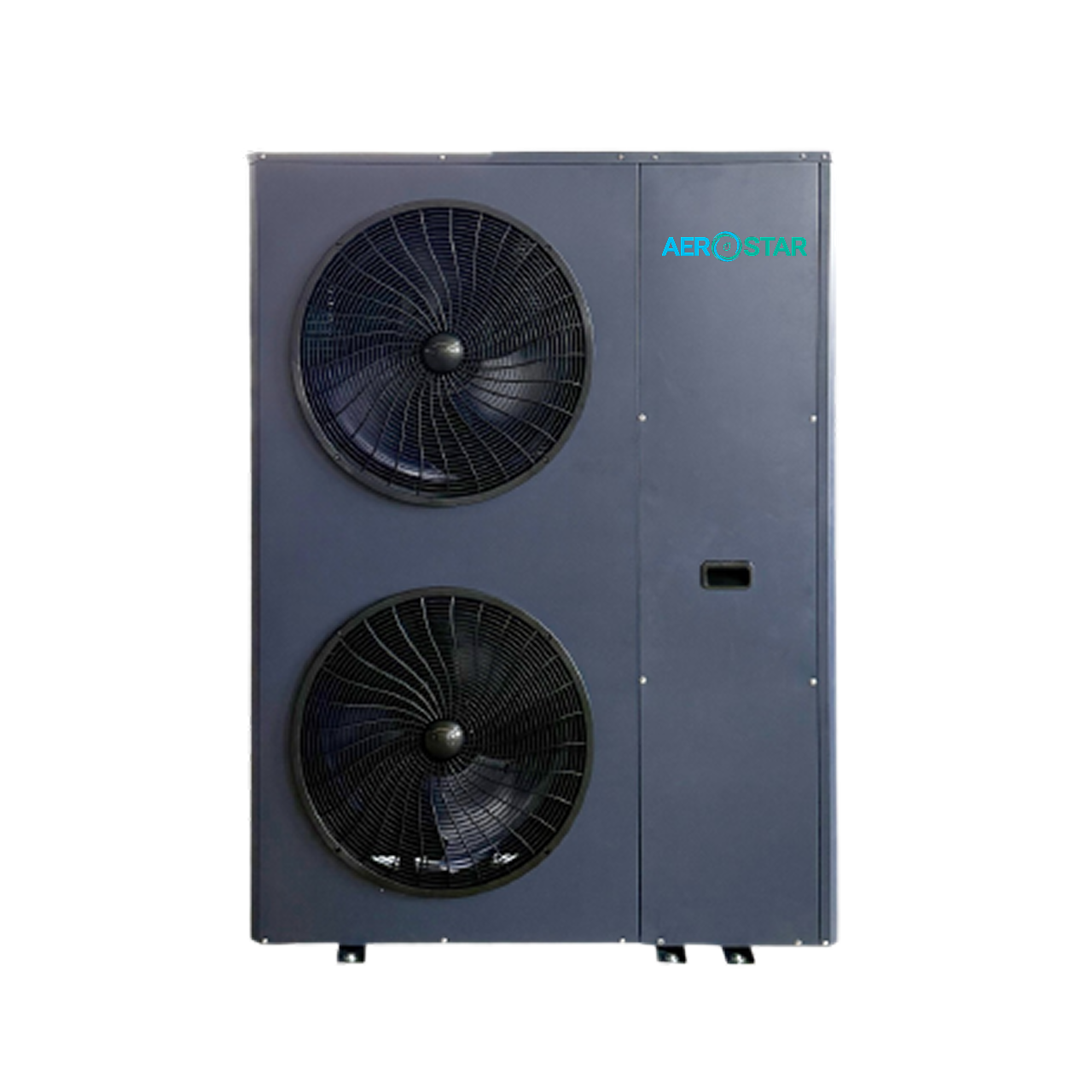

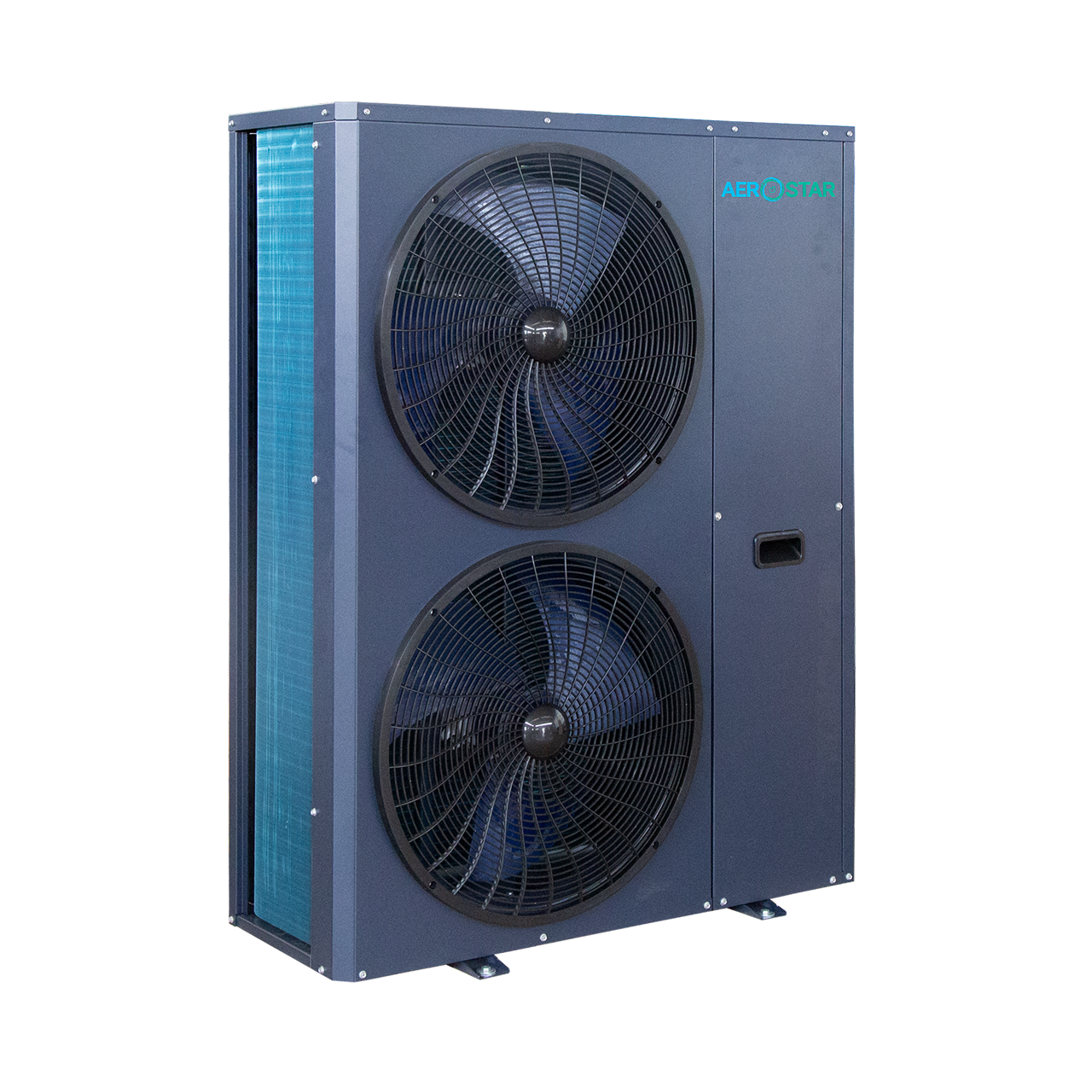

Aerostar AU-I Series Compressor-Condenser Units
Supplied together with a piping kit:
Smart подключение:
- The low-temperature kit allows cooling operation down to -15 °C;
- Refrigerant piping length up to 50 m, height difference up to 25 m;
- Variable-frequency compressor control protects the compressor from rapid wear caused by short cycling;
- The control panel allows adjustment of CCU settings and operating modes.
Functions of the CCU control panel:
- Monitoring of air temperature (before and after the evaporator, outdoor air), as well as refrigerant evaporation, condensation, and liquid phase temperatures;
- Display of CCU error messages;
- Control of CCU setpoints;
- Control of the operating timer;
- Setting date and time;
- Control of fan and solenoid valve shutdown delay;
- Protection against unauthorized access to the CCU.
Техникалық сипаттамалар
Single-circuit Basicfreeze CCUs of the AUi series are regularly kept in stock.
Piping kits are included as standard.
The nominal cooling capacity is specified at a refrigerant evaporation temperature of 7 °C and an outdoor air temperature of +35 °C.
Dimensions and weight are indicated as net values.
Detailed information is provided in the technical data sheet.
